Touchscreen Fully Automatic Bottle Blowing Machine

The Servo-driven lifting system is one of the standout features of this advanced bottle blowing machine. This system ensures fast, accurate, and stable positioning during the entire operation, allowing for higher precision in the production process. By offering optional servo feeding, clamping, and servo stretching systems, the machine is highly adaptable, meeting a wide range of production requirements. These features are especially beneficial in high-speed manufacturing environments where consistency and efficiency are critical.

An essential part of the machine’s design is the imported touch screen man-machine interface. This user-friendly interface allows operators to easily monitor and control the system, enhancing overall usability. The PLC automatic feedback fault point location system significantly reduces downtime and simplifies maintenance. With this feature, operators can quickly identify and address any issues, keeping the production line running smoothly and with fewer interruptions.

The customizable servo clamping system offers improved output and stronger stability. By adjusting the clamping pressure and force to suit specific requirements, this system enhances both the quality and speed of production, providing a tailored solution for various production environments.

Machine features

1. Servo-driven lifting system, fast, accurate, and stable positioning. Optional servo feeding, clamping, and servo stretching systems.
2. Using an imported touch screen man-machine interface computer, PLC, automatic feedback fault point location, and convenient maintenance.
3. The blowing parameters of each cavity are independently controlled, which is convenient for adjustment.
4. High safety factor: no hidden danger of personal injury, avoiding the danger of semi-automatic manual bottle picking, reducing the loss caused by accidents, and improving production efficiency.
5. Labor saving: the machine is operated by a single person or multiple people at the same time, saving 2 to 3 times the labor force.
6. It adopts a double-curved elbow, main connecting rod hinge mechanism, strong clamping force, and has the function of clamping mold pressurization when blowing at high pressure, and the action is stable and reliable.
7. Customizable servo clamping system, improved output, and stronger stability

Get A Quote

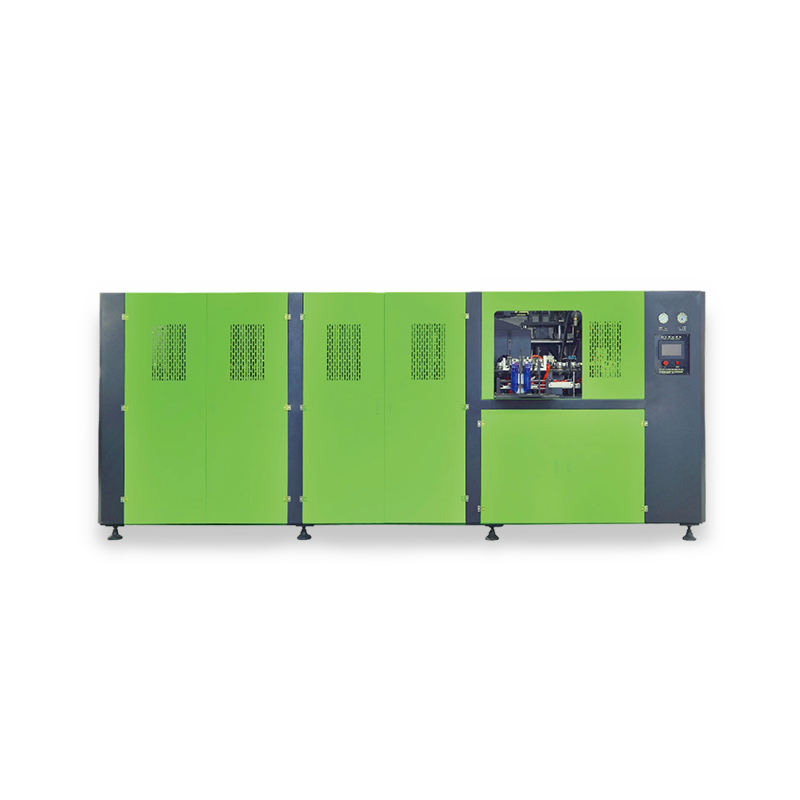

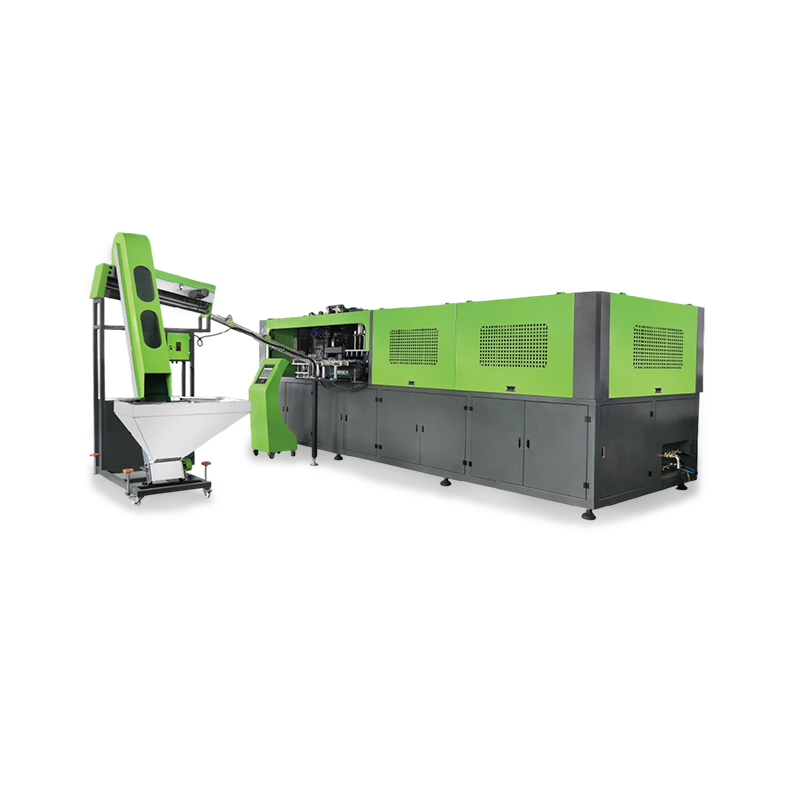

PREV：Steady Fully Automatic Bottle Blowing Machine NEXT：Gigh Speed Fully Automatic Bottle Blowing Machine

Parameter
Contact Us

Type	Item	Unit	TZ - 600 - 2	TZ - 600 - 4
Product Parameters	Number of Cavities	Cavities	2	4
	Output	pcs/hr	1500 - 2500	3500 - 4500
	Maximum Bottle Capacity	L	2	1.5
	Maximum Bottle Mouth Diameter	mm	65	65
	Maximum Bottle Diameter	mm	100	95
	Maximum Bottle Height	mm	320	300
Power Specifications	Maximum Heating Power	kw	21	32
	Total Machine Power	kw	24	32
	Actual Power Consumption	kw	18	22
Air Compression Specifications	Working Pressure	kg/cm²	7-9	7-9
	Low-pressure Power Consumption	Ltr/min	1000	1600
	Bottle - Blowing Pressure	kg/cm²	20 - 35	20 - 35
	High-pressure Power Consumption	Ltr/min	1500 - 2000	2000 - 2200
Cooling Water Specifications	Working Pressure	kc/cm²	5-6	5-6
	Temperature Range	℃	10	10
	Consumption	kcal/hr	5600	5600
	Chilled Water Flow Rate	Ltr/min	30	30
Appearance Specifications	Machine Dimensions	m	3.0x1.6x1.9	4.2x1.9x1.9
Appearance Specifications	Machine Weight	T	2.5	3.7
